ZIMMER® Tapered Screw-Vent Analog Compatible with NP 3.5mm/ RP 4.5mm/ WP 5.7mm

5.7mm ZIMMER Tapered Screw Vent Dental Implant Analogue

ZIMMER® Tapered Screw-Vent Analog Compatible with

NP 3.5mm/ RP 4.5mm/ WP 5.7mm

Material:

Stainless Steel 303F / Titanium GR5

Feature:
* Reproducibility
* Precision machined up to ± 5µm
* Position indicator & Level stopper for 3D print & Stone model
* Anti-rotate design

Head that reproduces the implant system joint.
Position indicator and level stopper support precise positioning of removable gingiva mask.
Gentle retaining area to easily position the soft gum in the working model.
Effective circuit and self-locking cross retainers that, inside the plaster, provide extraordinary embedding even in cases of abutment drilling on model.
Its discrete size means that analogues can be easily fitted, despite the implants being close together or not parallel.

Approved by CE, ISO 9001, ISO 13485

Points of Zimmer Tapered Screw-Vent® (TSV), Screw-Vent® Analogue:

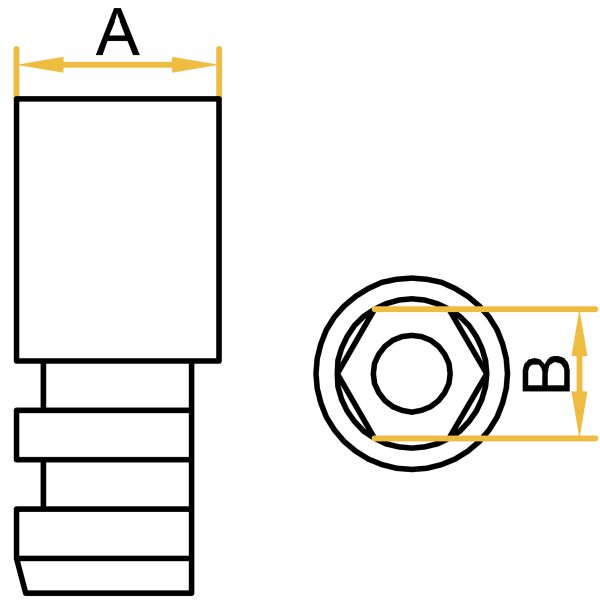

Fixture level analogs (Fig.1) are offered in three platform diameter and internal indexing dimension specific iterations. Each platform diameter analog is color coded in compliance with the Screw-Vent® platform identification scheme. Green represents the 3.5mm (catalog # IA3) implant/abutment platform diameter, purple equates to the 4.5mm (catalog # IA4) platform and yellow corresponds to the 5.7mm (catalog # IA5) platform diameter. The analogs are not interchangeable from platform diameter to platform diameter due to the implant/abutment specific interface design of each platform diameter.

5.7mm Dental Implant Analogue

ZIMMER Screw Vent Implant Analogue

5.7mm Screw Vent Dental Analogue
